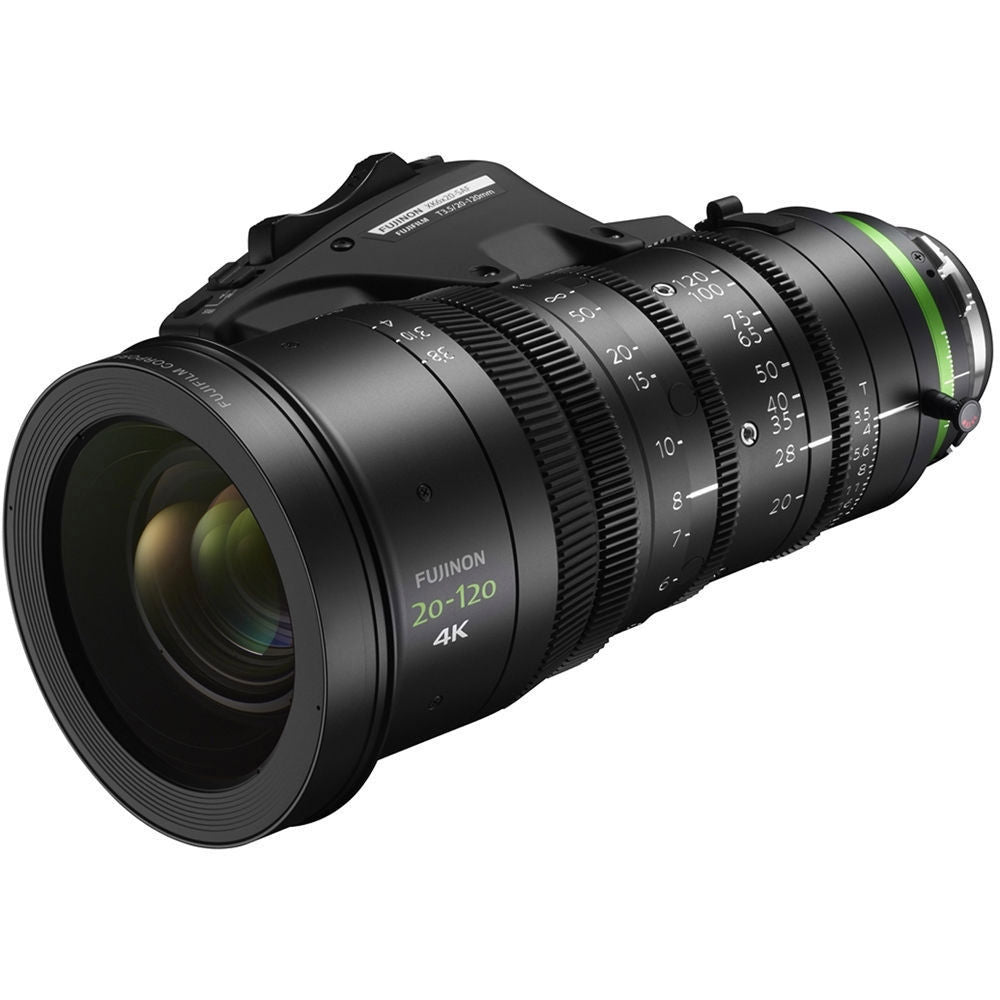

The PL 20-120mm Cabrio XK (XK6x20) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens. The XK6x20 also features flange focal distance adjustment, macro function, and is LDS (Lens Data System) and /i metadata compatible. With a 20-120mm focal range, weight of only 2.9kg including servo motors, a T Stop of T3.5 end to end, The Cabrio XK is sure to become the "go-to" lens.
Videographers used to shooting video in a typical ENG-style will be very comfortable with the servo. Cinematographers will also be right at home with this lens. With the detachable drive removed, the lens is set to accept industry standard cine motors and matte boxes. Plus, the lens has all the lens data output that appeals to a Cine-style shooter. LDS and /i metadata compatibility is very useful when you want to record the position information of zoom, iris and focus for computer animation and other uses.
The digital servo on the 20-120mm Cabrio XK has 16-bit encoding, so operators can be assured that all lens data output is extremely accurate.
The 20-120mm covers S35 sensor size (Super 35 Film Format - 24.84 x 13.97mm) PL 20-120mm on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possible.
Barrel markings are luminous for visibility in dark shooting situations. Distances are listed in feet or meters and can be changed in the field.
The 20-120mm can be controlled using cinema industry standard wireless controllers, as well as existing Fujinon wired and wireless units. Whether you are from a film background or a video one, the Premier PL 20-120mm offers uncompromising quality and unprecedented flexibility.
- With Detachable Digital Drive Unit
- Flange Focal Distance Adjustment
- LDS & /i Compatible
- Lens Hood Included - accepts M127 filter
Principal Key Features:
- Wireless Control Enabled
- Macro Focus
- 0.8 Cine gearing
- 9 Blade Iris
- Luminous Barrel Markings
- 16-bit Encoders
- LDS and /i Tech lens data
- Hot Shoe to camera
- External connections
High optical performance - lightweight and compact design:
- Designed utilizing our latest optical simulation technology
- Compact size and light weight with integrated drive unit with the lens
- High optical performance is kept not only the center but also the corners
- Latest lens Coating Technology - HT-EBC
Flexible:
- Use with attached Servo Drive Unit - hand held "run & gun"
- Use without the servo in Cine mode - with rods, matte box, and a host of industry standard motors and controls, wired or wireless!
